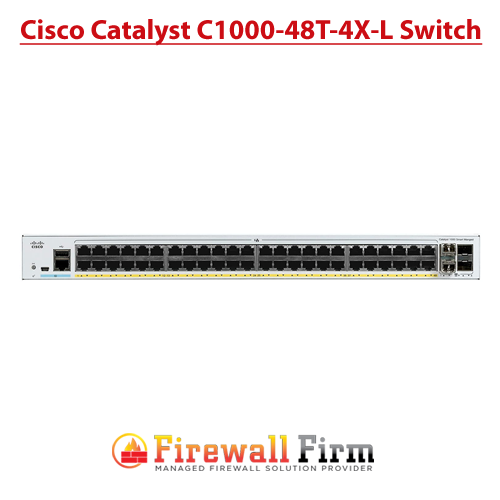

Cisco Catalyst C1000-48T-4X-L Switch
Buy Cisco Switch online from Firewall Firm’s IT Monteur Store
Cisco Catalyst C1000-48T-4X-L Switch | Register & Request Quote | |||||||||||||||||||||
|
Cisco Catalyst C1000-48T-4X-L Switch |
Product Details
The Cisco Catalyst 1000 Series Switches provides these features:
* 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
* 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks
* Perpetual PoE+ support with a power budget of up to 740W
* CLI and/or intuitive web UI manageability options
* Network monitoring through sampled flow (sFlow)
* Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
* Compact fanless models available with a depth of less than 13 inches (33 cm)
*Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol(SNMP), RJ-45, or USB console access
* Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)
Performance |
|
Forwarding bandwidth | 88 Gbps |
Switching bandwidth | 176 Gbps |
Forwarding rate(64—byte L3 packets) | 77.38 Mpps |
Unicast MAC addresses | 16000 |
IPv4 unicast direct routes | 542 |
IPv4 unicast indirect routes | 256 |
IPv6 unicast direct routes | 414 |
IPv6 unicast indirect routes | 128 |
IPv4 static routes | 16 |
IPv6 static routes | 16 |
IPv4 multicast routes and IGMP groups | 1024 |
IPv6 multicast groups | 1024 |
IPv4/MAC security ACEs | 600 |
IPv6 security ACEs | 600 |
Maximum active VLANs | 256 |
VLAN IDs available | 4094 |
Maximum STP instances | 64 |
Maximum SPAN sessions | 4 |
MTU-L3 packet | 9198 bytes |
Jumbo Ethernet frame | 10,240 bytes |
Dying Gasp | Yes |
MTBF in hours (data) | 1,452,667 |
MTBF in hours (PoE) | 856,329 |
MTBF in hours (Full PoE) | 856,329 |
