Home » Firewall Security » Cisco Catalyst C1000-24P-4G-L Switch

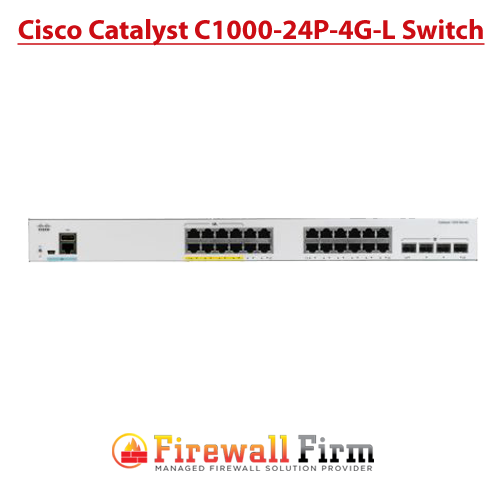

Cisco Catalyst C1000-24P-4G-L Switch

Cisco Catalyst C1000-24P-4G-L Switch

Buy Cisco Switch online from Firewall Firm’s IT Monteur Store

Cisco Catalyst C1000-24P-4G-L Switch Register & Request Quote
Product Code C1000-24P-4G-L
Description 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 1G SFP uplinks
Gigabit Ethernet ports 24
Uplink interfaces 4 SFP
Fanless Y
CPU ARM v7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Forwarding bandwidth 28 Gbps
Switching bandwidth 56 Gbps
Cisco Catalyst C1000-24P-4G-L Switch

Datasheet

Product Details

The Cisco Catalyst 1000 Series Switches provides these features:
* 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
* 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks
* Perpetual PoE+ support with a power budget of up to 740W
* CLI and/or intuitive web UI manageability options
* Network monitoring through sampled flow (sFlow)
* Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
* Compact fanless models available with a depth of less than 13 inches (33 cm)
*Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol(SNMP), RJ-45, or USB console access
* Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)

Performance

Forwarding bandwidth 28 Gbps
Switching bandwidth 56 Gbps
Forwarding rate(64—byte L3 packets) 41.67 Mpps
Unicast MAC addresses 16000
IPv4 unicast direct routes 542
IPv4 unicast indirect routes 256
IPv6 unicast direct routes 414
IPv6 unicast indirect routes 128
IPv4 static routes 16
IPv6 static routes 16
IPv4 multicast routes and IGMP groups 1024
IPv6 multicast groups 1024
IPv4/MAC security ACEs 600
IPv6 security ACEs 600
Maximum active VLANs 256
VLAN IDs available 4094
Maximum STP instances 64
Maximum SPAN sessions 4
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
Dying Gasp Yes
MTBF in hours (data) 2,026,793
MTBF in hours (PoE) 698,220
MTBF in hours (Full PoE) 698,220
